รายละเอียดเพิ่มเติม
-100Kva
-120Kva
-160Kva

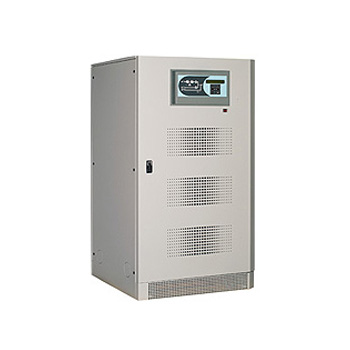

The B4033 represents the most sold series of our product world-wide. In these years since the extension from 20 to 160 kVA it has almost become the synonym of Borri.
It’s a very reliable product of great flexibility. It’s mostly used in the hospital and in the industrial environment.
The 125 kVA and 160 kVA versions are often used for data processing centers and crictical servers protection.
Technical data :
| UPS Topology | On-Line Double Conversion |
| Output Power (CosΦ 0,8) – KVA | 20 / 30 / 40 / 60 / 80 / 100 / 125 /160 |
| Efficiency (AC ÷ AC) – % (ECO mode) | >92 |
| Efficiency (AC ÷ AC) – %) | >92 |
| Storage time of battery without recharge (at 25°C) | 3 months |
| EMC compatibility | According to “EN50091-2” (CE label) |
| Nominal Imput Voltage – Vac | 380÷415 (Selectable) +/- 10% |
| Inverter Bridge | IGBT (High frequency commutation) |
| Nominal Output Voltage – Vac | 380÷415 (Selectable) |
| Output Frequency (Hz) | 50 – 60 (Selectable) |
| Overload Capability | 125% for 10 min |
| Overload Capability | 200% for 100 ms |
| Output Harmonic Distorsion With Linear Load | <2% |
| Output Harmonic Distorsion With Non Linear Load (Crest Factor 3:1) | <5% |
| Output Harmonic Distorsion IEC 62040-3 | Completely complying |
| Crest Factor (Non Linear Load) | 3:1 |
| Autonomy | 0 / 5 / 10 / 15 / 20 / 30 / 50 minutes |
